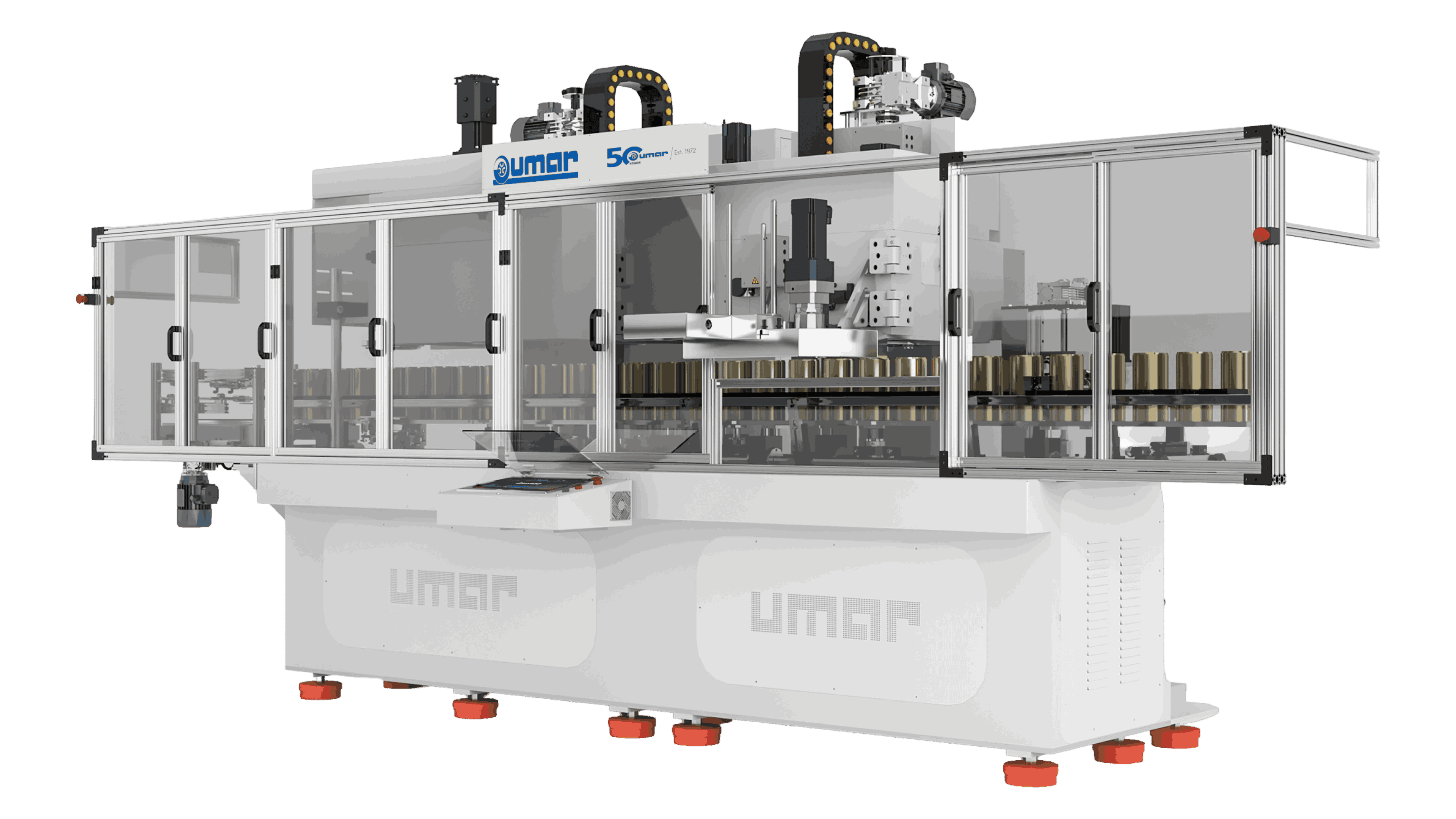

MAC Series – Can Body Assembly Line for Round Cans

High-Tech Modular Line for Round Can Body Forming, Seaming, and Finishing

Compact design. Modular architecture. Continuous production.

The UMAR MAC Series – Round Can Assembling Line is an advanced modular machine system engineered to perform multiple operations on round cans, such as flanging, top/bottom seaming, beading, anti-cut necking, expanding, and more—all in a single automated line. Designed for flexibility and performance, this line serves a wide range of round tin containers from food cans to paint pails and chemical drums.

Designed for the production of round can bodies, this line integrates multiple operations into a single system, including flanging, top and bottom seaming, beading, expanding, necking, and re-flanging. The result is efficient, consistent, and high-quality output.

Can bodies are transferred and processed through servo-controlled systems, ensuring precise positioning and synchronization across all stations. The modular architecture allows production of various diameters, heights, and shapes on a single line.

The system supports open-top and double-seamed cans, as well as straight and conical formats. All parameters are centrally managed via a 15” touchscreen HMI. Industry 4.0 compatibility enables full data integration and monitoring.

A servo-driven automatic height adjustment system ensures fast format changeover with minimal downtime. The compact footprint maximizes space efficiency in production environments.

System Highlights

• Compact Machine Design: Small footprint ideal for high-output production floors
• Fully Modular Architecture:Designed for a wide range of round tin cans including:
  • Open-top or double-seamed cans
  • Straight or conical profiles
  • Food-grade and industrial containers
• User-Friendly Controls:
  • 15” touchscreen panel for intuitive operation
  • Fast, recipe-based format changeovers
  • Fully automatic height adjustment with servo-driven systems
• Smart Manufacturing Compatible:
  • Industry 4.0 ready: full connectivity with plant networks
  • Remote access for production monitoring via smart devices
  • Online service access & software updates—from anywhere
• Efficient Maintenance & Accessibility: Built with a focus on easy servicing, minimal downtime, and extensive PLC-based diagnostics
• Single line for multiple can formats

Optional Operations & Add-On Stations

• Double Flanging Station – for top and bottom edge preparation
• Top / Bottom Seaming Unit – for fully closed round cans
• Conical Shaping Head – ideal for stackable paint cans or pails
• Necking and Flanging Units – with anti-cut necking option for safer handling
• Beading / Brading Station – specifically designed for food cans and pails
• Pail Top Edge Double Curl – adds structural reinforcement
• Embossing Units – available in various patterns and with adjustable depth
• Handle Lug Welding Station – for attaching wire or plastic handles
• UN Upgraded Seam Unit – for certified industrial use
• Lid Feeding Conveyor System – for full integration with lid seaming stations

Built for Performance and Reliability

• Long-term operation stability
• Commercial component usage for global availability
• Mechanical robustness for 24/7 high-volume production
• Modern aesthetics with safety-first design

Technical Data

Model	Can Volume (L)	Capacity (cans/min)*	Body Dimensions (mm)	Body Height (mm)	Tinplate Thickness (mm)
MAC 52310	0.175 – 18	70 – 120	Ø65 – Ø230	60 – 380	0.20 – 0.40
MAC 52304 (OT*)	0.175 – 18	70 – 120	Ø65 – Ø230	60 – 380	0.20 – 0.40

* OT = Open Top
* Output speed varies depending on can body dimensions and operations selected.
