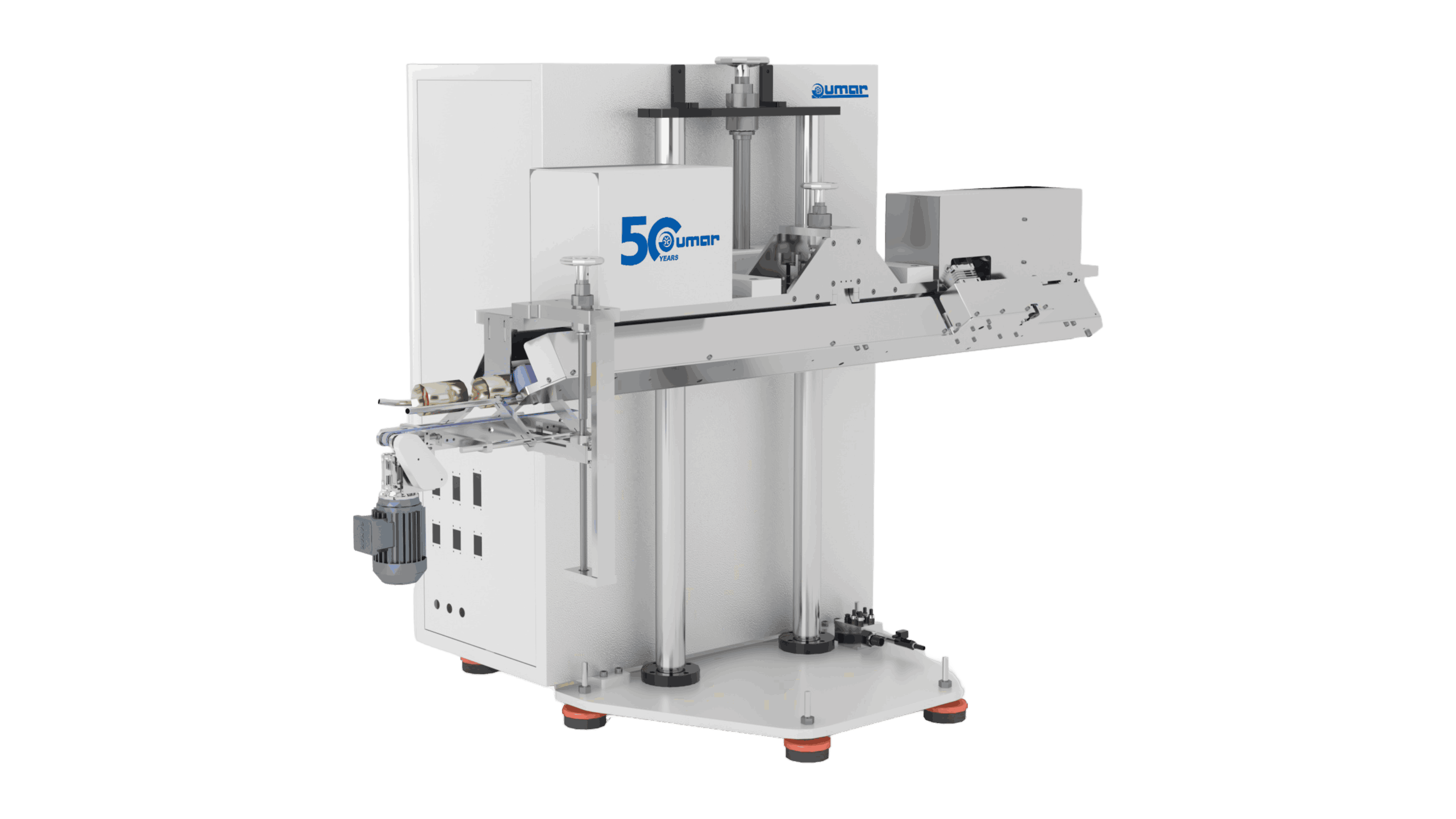

Can Body Welder, Accessories & Seam Protection Layer Curing Systems – Induction Curing Oven

Continuous production. Absolute precision. Full control.

• Umar’s modular curing systems harden lacquer or powder seam protection immediately after application, ensuring strong adhesion and consistent seam quality.
• Available in gas or induction versions, with linear or U-shape layouts, the system includes automatic temperature control and speed-adjustable conveyor belts for flexible integration.
• Rare-earth magnetic induction coils deliver stable, uniform curing with long service life. Dual-side PWM pulse control ensures reliable operation independent of main power fluctuations.
• Smart heating activates only when can bodies are detected, reducing energy consumption and eliminating unnecessary heat loss.
• No water cooling is required, minimizing condensate and maintenance.
• A powerful exhaust system keeps the workspace clean, while PLC-controlled HMI enables precise digital control. Optional intelligent temperature regulation and customized transport systems are available for specific production needs.

Technical Data

Model	Capacity (m/min.*)	Body Diameter (mm)	Heating Options
MAC 35234	9 – 25	Ø73 – 300	LPG / NATURAL GAS / INDUCTION

* VARIES DEPENDING ON WELDER SPEED. OVEN LENGTH AND NUMBER OF HEATERS CAN BE REDUCED ON DEMAND.
